Use and Characteristics:

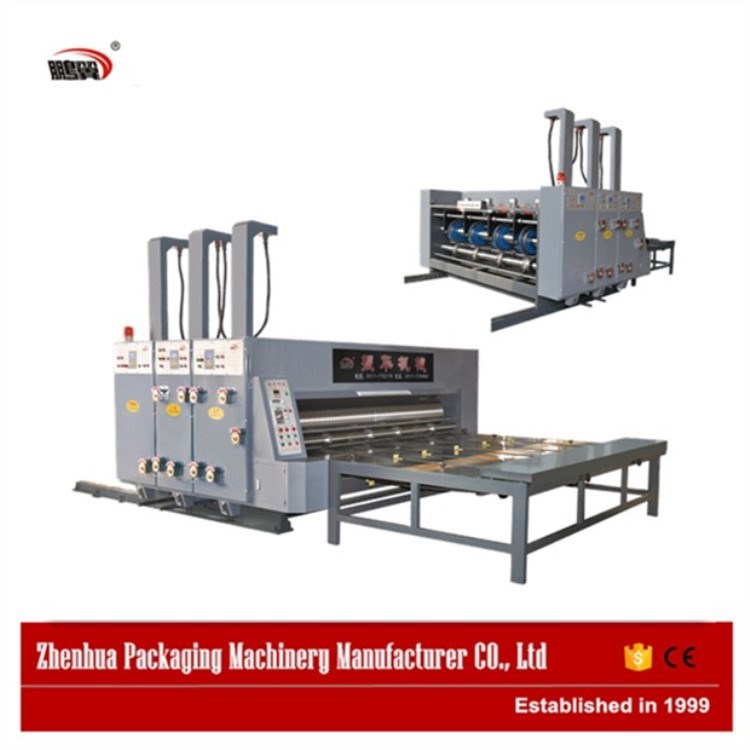

The machine can be composed of two-color, three color, four-color printing slotting die cutting machine, while providing
a complete printing, slitting, creasing, die cutting, corner cutting process, and the advantages of similar products in the absorption of the aircraft based on the all- new design, has a beautiful appearance, novel, compact, high-resolution
printing, color printing error is small, easy adjustment and accurate, can achieve seamless transmission gear, and can
achieve non-stop printing roller electric phase adjustment of 360 degrees, the aircraft manual and pneumatic lift version
has two structural forms, pneumatic structure air can be achieved with ink and inking roller from the printing plate
automatic inking and improve the operating speed, the aircraft and is equipped with manual and electric phase of the
phase two, 360-degree adjustment phase, the ink not to dry and condensation, improved network roll and rubber roll
life. Is ideal for carton industry and advanced printing equipment
Model | Diameter of printing roller (mm) | Width of feeding paper(mm) | Effective printing area(mm2) | Power of motor(KW) |
YSF304C-2000 | 304 | 2000 | 900*1800 | 3.0 |
YSF420C-2000 | 420 | 2000 | 1250*1800 | 3.0 |
YSF480C-2200 | 480 | 2200 | 1450*2000 | 4.0 |
YSF530C-2400 | 530 | 2400 | 1650*2200 | 4.0 |
YSF600C-2600 | 600 | 2600 | 1850*2400 | 5.5 |
YSF800C-3600 | 800 | 3600 | 2500*3600 | 11 |
振華包裝機械制造有限公司（原河北省東光縣聯通包裝機械廠）是紙箱機械的生產
廠家，地處華北平原，南依濟南、北靠京津、傍臨京滬鐵路、京福高速公路、104國
道，交通十分便利。
公司擁有先進的生產、檢測設備和高素質化的管理質檢生產人員以及優良的售后服
務隊伍，產品質量佳、壽命長。多年來，憑借優良的售前、售中、售后服務質量受到客
戶一致好評，并與客戶建立品質優、良好的合作伙伴關系。
公司本著“科學技術是生產力”的方針，在生產經營中努力提品的科技含量，注重高
新技術產品的開發，增強了產品在同行業中的競爭力，產品品質、性能、壽命均列行業
榜首。
在今后的生產經營中，滄州振華包裝機械制造有限公司會以更堅定的步伐，研發科技含
量更高、性能更好、品質更有的產品，并以更周到、更優良的售后服務來答謝各界朋友
的厚愛，與您攜手共創佳績。
