加工定制
是
品牌
RL
型號
SMD0805P010TF----075TF
種類
保險絲
用途
電子
體積
小型
電壓特性
安全電壓
形狀
貼片式
熔斷速度
M/中速
自動復位功能
有
較大電壓
15（V）
較大電流
1.25（A）
動作溫度
25（℃）

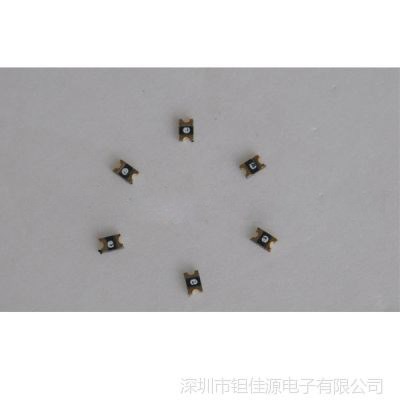

產品電氣特性參數 Performance specification （25℃）
| Model 型號 | Vmax | Imax | Ih | It | Pd | Time to trip | Resistance | ||
| V | A | A | A | W | Current(A) | Time(s) | Rmin(Ω) | R1max(Ω) | |
| SMD0805P005TF | 16.0 | 100 | 0.05 | 0.15 | 0.5 | 0.25 | 1.50 | 2.000 | 10.000 |
| SMD0805P010TF | 16.0 | 100 | 0.10 | 0.30 | 0.5 | 0.5 | 1.50 | 1.000 | 6.000 |
| SMD0805P020TF | 9.0 | 100 | 0.20 | 0.40 | 0.5 | 8.0 | 0.02 | 0.650 | 3.500 |
| SMD0805P025TF | 9.0 | 100 | 0.25 | 0.50 | 0.5 | 8.0 | 0.02 | 0.600 | 3.000 |
| SMD0805P035TF | 6.0 | 100 | 0.35 | 0.70 | 0.6 | 8.0 | 0.10 | 0.250 | 1.200 |
| SMD0805P050TF | 6.0 | 100 | 0.50 | 1.00 | 0.6 | 8.0 | 0.10 | 0.150 | 0.850 |
| SMD0805P075TF | 6.0 | 40 | 0.75 | 1.50 | 0.8 | 8.0 | 0.20 | 0.090 | 0.385 |
符號Sign | 說明 | Definition |
Ih | RLPTC在25℃環境溫度下的較大 工作電流 | Hold current-maximum current at which the device will not trip at 25℃ |
It | RLPTC在25℃環境溫度下啟動保護的小電流 | Trip current-minimum current at which the device will always trip at 25℃ |
Vmax | RLPTC的較大工作電壓 | Maximum voltage at which the device will not trip |
Vmaxi | RLPTC在阻斷狀態下所承受的較大電壓 | Maximum voltage device can withstand without damage at it rated current |
Imax | RLPTC能承受的較大電流 | Maximum fault current device can withstand without damage at rated voltage |
Rmin | RLPTC工作前的初始小阻值 | Minimum device resistance at 25℃ prior to tripping |
Rmax | RLPTC工作前的初始較大阻值 | Maximum device resistance at 25℃ prior to tripping |
Figure | 圖示 | The Figure of RLPTC |
Lead | 導線尺寸 | Lead diameter |
