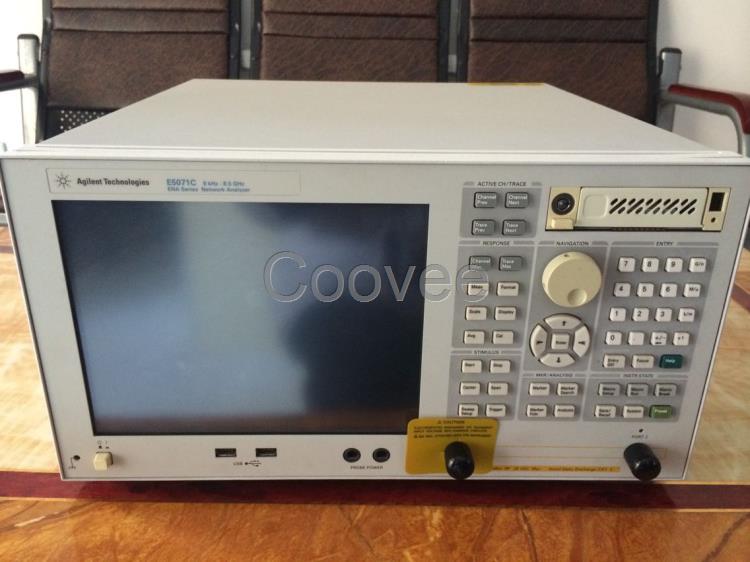

主要特性和功能

· 9 kHz 至 4.5/6.5/8.5/14/20 GHz

· 2 或 4 端口，50 Ω，S 參數測試儀

· 提供 130 dB 寬廣的動態范圍、8 ms 快速測量速度和 0.005 dB/℃ 溫度穩定度，可改善測量精度、提高產品良率并增加設計裕量

· 增強時域分析選件可對高速串行互連進行全面表征，增強您對設計的信心

· 所有選件均可升級，保護您的投資

Additional features

E5071C-010 時域分析

E5071C-790 測量向導助手（MWA）軟件

E5071C-008 頻率偏置模式

E5071C-TDR E5071C-TDR 增強型時域分析選件

Timebase stability

E5071C-UNQ Standard stability timebase

E5071C-1E5 High stability timebase

Calibration documentation

E5071C-1A7 Calibration + Uncertainties + Guardbanding (Not Accredited)

E5071C-A6J ANSI Z540-1-1994 Calibration

Test set

E5071C-280 2-port Test Set, 9 kHz to 8.5 GHz without Bias Tees

E5071C-285 2-port Test Set, 100 kHz to 8.5 GHz with Bias Tees

E5071C-480 4-port Test Set, 9 kHz to 8.5 GHz without Bias Tees

E5071C-485 4-port Test Set, 100 kHz to 8.5 GHz with Bias Tees

E5071C-240 2-port Test Set, 9 kHz to 4.5 GHz without Bias Tees

E5071C-245 2-port Test Set, 100 kHz to 4.5 GHz with Bias Tees

E5071C-2K5 2-port Test Set, 300 kHz to 20 GHz with Bias Tees

E5071C-440 4-port Test Set, 9 kHz to 4.5 GHz without Bias Tees

E5071C-445 4-port Test Set, 100 kHz to 4.5 GHz with Bias Tees

E5071C-4K5 4-port Test Set, 300 kHz to 20 GHz with Bias Tees

E5071C-4D5 4-port Test Set, 300 kHz to 14 GHz with Bias Tees

E5071C-465 4-port Test Set, 100 kHz to 6.5 GHz with Bias Tees

E5071C-460 4-port Test Set, 9 kHz to 6.5 GHz without Bias Tees

E5071C-2D5 2-port Test Set, 300 kHz to 14 GHz with Bias Tees

E5071C-265 2-port Test Set, 100 kHz to 6.5 GHz with Bias Tees

E5071C-260 2-port Test Set, 9 kHz to 6.5 GHz without Bias Tees

Hard disk drive options

E5071C-017 Removable Data Storage

E5071C-019 Standard Data Storage

Accessories

E5071C-1CM Rack mount kit

E5071C-1CN Front handle kit

E5071C-1CP Rack mount and front handle kit

E5071C-810 Add keyboard

E5071C-820 Add mouse
